A washer is a thin steel plate (typically disk-shaped) with a hole (typically in the middle) that is normally used to distribute the load of a threaded fastener i.e. Hex Bolts, Hex Nuts & screws etc. Srons Engineers are the largest manufacturers, suppliers and exporters of all types of Plain Washers / Flat Washers / DIN 125 Washer / DIN 126 Washers in India.

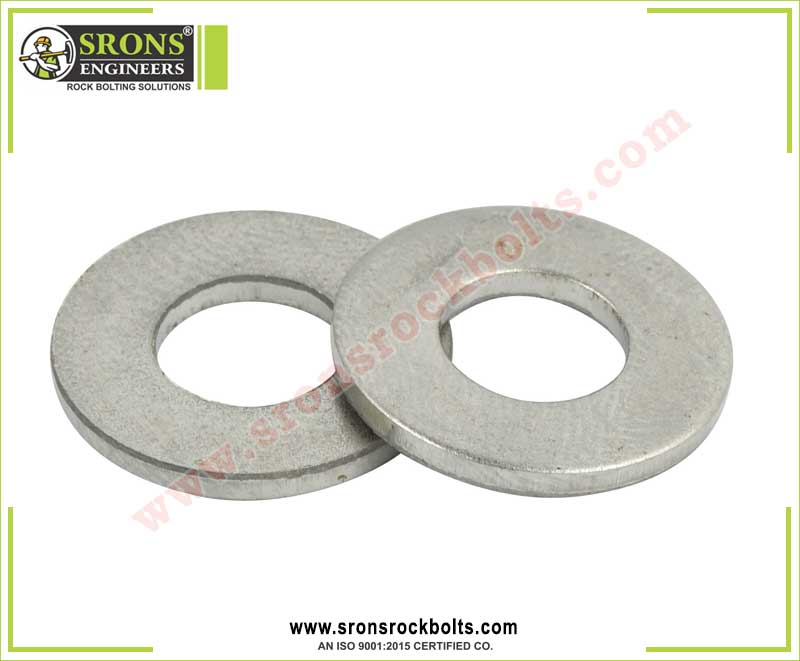

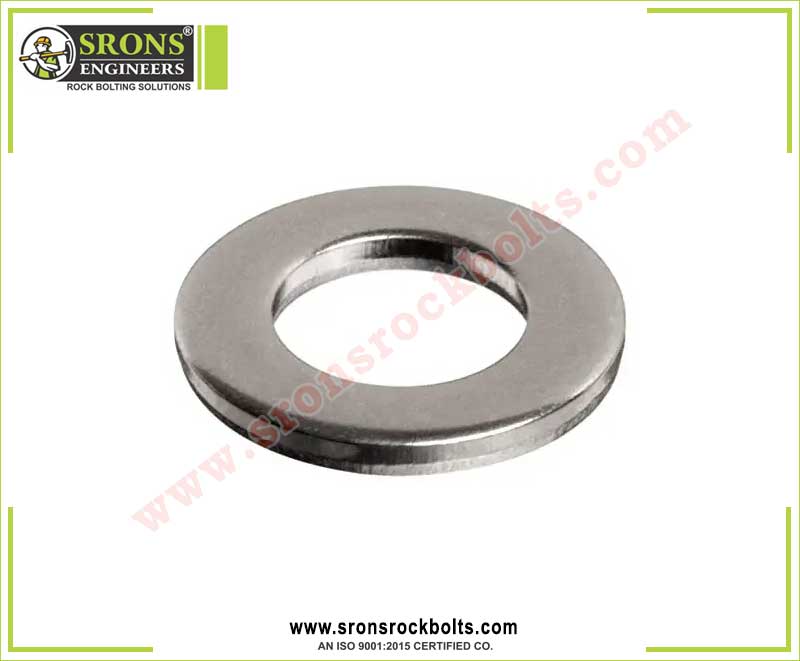

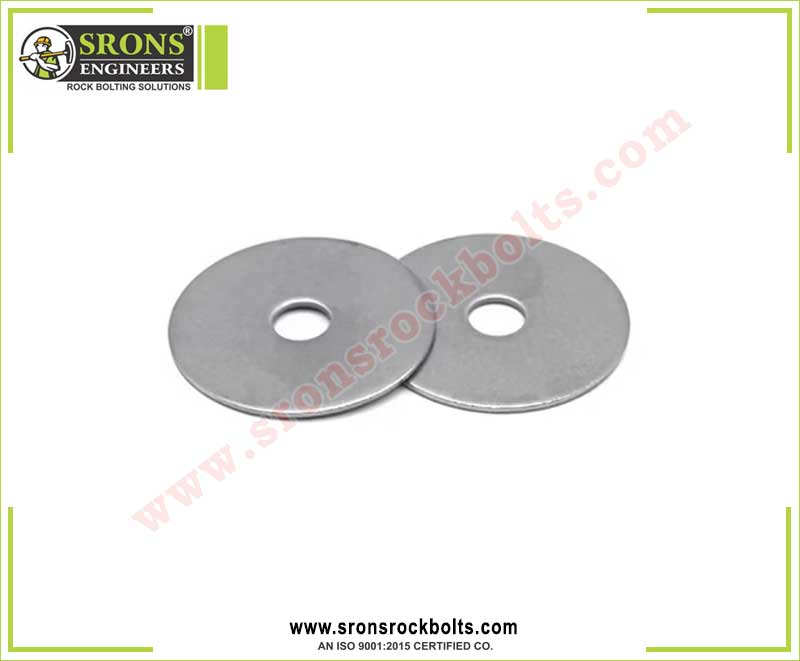

Plain Washers / Flat Washers

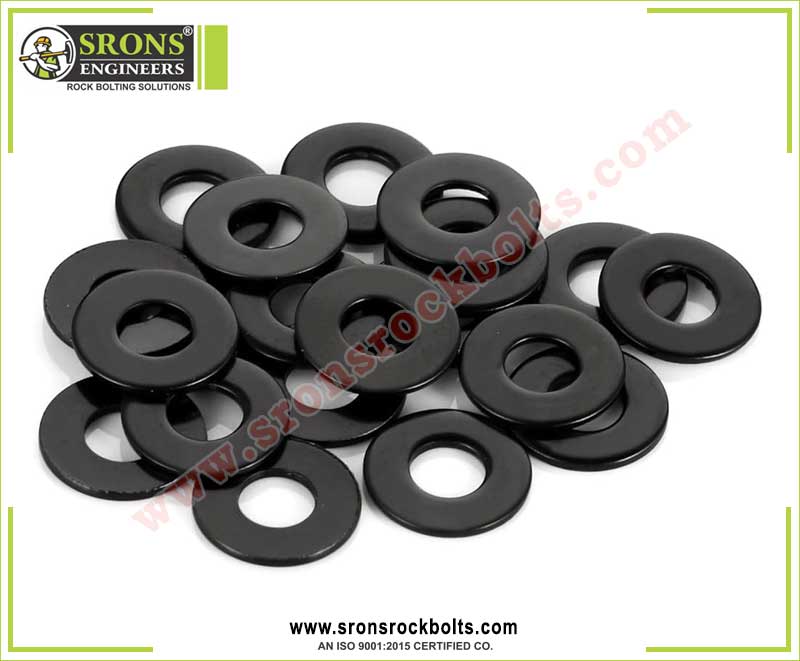

Plain Washers / Flat Washers Black Finish

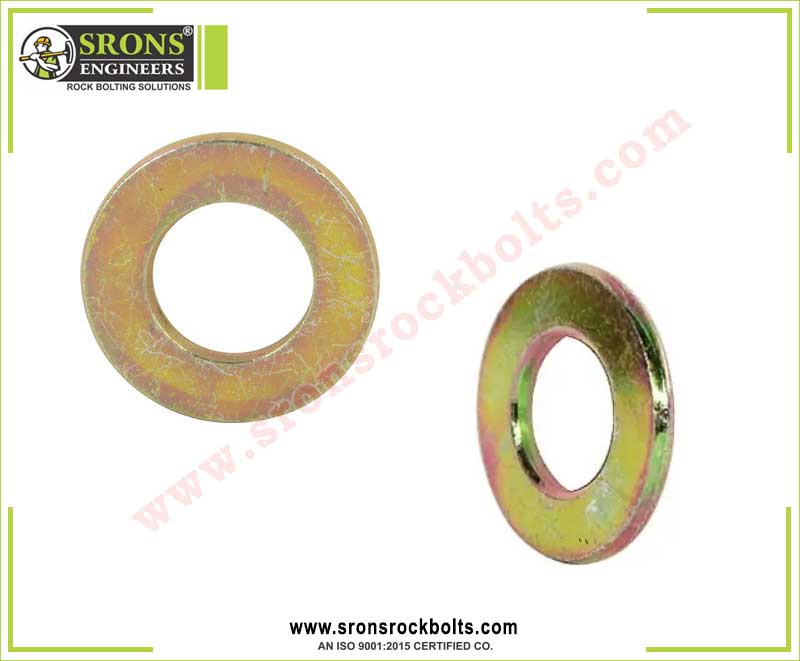

Plain Washers / Flat Washers Yellow Finish

Plain Washers / Flat Washers Galvanized

SIZE	d1 min.	d1 max.	d2 max.	d2 min.	h size.	h max.	h min.	WT. OF 1000 PCS IN KGS
M1.6	1.7	1.84	4	3.7	0.3	0.35	0.25	0.024
M1.7	1.8	1.94	4.5	4.2	0.3	0.35	0.25	0.031
M2	2.2	2.34	5	4.7	0.3	0.35	0.25	0.037
M2.3	2.5	2.64	6	5.7	0.5	0.55	0.45	0.092
M2.5	2.7	2.84	6	5.7	0.5	0.55	0.45	0.088
M2.6	2.8	2.94	7	6.64	0.5	0.55	0.45	0.127
M3	3.2	3.38	7	6.64	0.5	0.55	0.45	0.119
M3.5	3.7	3.88	8	7.64	0.5	0.55	0.45	0.155
M4	4.3	4.48	9	8.64	0.8	0.9	0.7	0.308
M5	5.3	5.48	10	9.64	1	1.1	0.9	0.443
M6	6.4	6.62	12	11.57	1.6	1.8	1.4	1.02
M7	7.4	7.62	14	13.57	1.6	1.8	1.4	1.39
M8	8.4	8.62	16	15.57	1.6	1.8	1.4	1.83
M10	10.5	10.77	20	19.48	2	2.2	1.8	3.57
M12	13	13.27	24	23.48	2.5	2.7	2.3	6.27
M14	15	15.27	28	27.48	2.5	2.7	2.3	8.62
M16	17	17.27	30	29.48	3	3.3	2.7	11.3
M18	19	19.33	34	33.38	3	3.3	2.7	14.7
M20	21	21.33	37	36.38	3	3.3	2.7	17.2
M22	23	23.33	39	38.38	3	3.3	2.7	18.3
M24	25	25.33	44	43.38	4	4.3	3.7	32.3
M26	27	27.33	50	49.38	4	4.3	3.7	43.7
M27	28	28.33	50	49.38	4	4.3	3.7	42.3
M28	29	29.33	50	49.38	4	4.3	3.7	40.9
M30	31	31.39	56	55.26	4	4.3	3.7	53.6
M32	33	33.62	60	58.8	5	5.6	4.4	77.4
M33	34	34.62	60	58.8	5	5.6	4.4	75.3
M35	36	36.62	66	64.8	5	5.6	4.4	94.3
M36	37	37.62	66	64.8	5	5.6	4.4	92.1
M38	39	39.62	72	70.8	6	6.6	5.4	136
M39	40	40.62	72	70.8	6	6.6	5.4	133
M40	41	41.62	72	70.8	6	6.6	5.4	130
M42	43	43.62	78	76.8	7	8	6	183
M45	46	46.62	85	83.6	7	8	6	220
M48	50	50.62	92	90.6	8	9	7	294
M50	52	52.74	92	90.6	8	9	7	284
M52	54	54.74	98	96.6	8	9	7	330
M55	57	57.74	105	103.6	9	10	8	431
M56	58	58.74	105	103.6	9	10	8	425
M58	60	60.74	110	108.6	9	10	8	472
M60	62	62.74	110	108.6	9	10	8	458
M64	66	66.74	115	113.6	9	10	8	492
M68	70	70.74	120	118.6	10	11	9	586
M72	74	74.74	125	123.4	10	11	9	626
M76	78	78.74	135	133.4	10	11	9	749
M80	82	82.87	140	138.4	12	13.2	10.8	953
M85	87	87.87	145	143.4	12	13.2	10.8	996
M90	93	93.87	160	158.4	12	13.2	10.8	1250
M95	98	98.87	165	163.4	12	13.2	10.8	1300
M100	104	104.9	175	173.4	14	15.2	12.8	1710
M105	109	109.9	180	178.4	14	15.2	12.8	1770
M110	114	114.9	185	183.15	14	15.2	12.8	1830
M115	119	119.9	200	198.15	14	15.2	12.8	2230
M120	124	125	210	208.15	16	17.2	14.8	2830
M125	129	130	220	218.15	16	17.2	14.8	3130
M130	134	135	220	218.15	16	17.2	14.8	3000
M135	139	140	230	228.15	16	17.2	14.8	3310
M140	144	145	240	238.15	18	19.2	16.8	4090
M145	149	150	250	248.15	18	19.2	16.8	4470
M150	155	156	250	248.15	18	19.2	16.8	4270
M160	165	166	250	248.15	18	19.2	16.8	3910
