Self Drilling Anchor / Self Drilling Anchor Bolt Systems

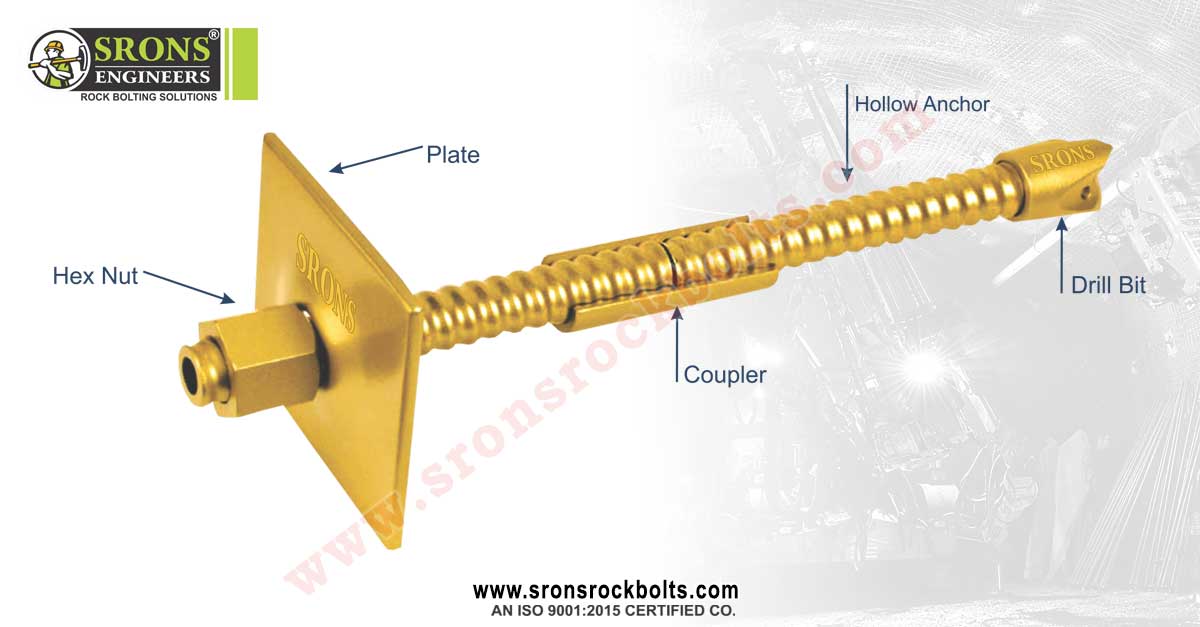

The Self-Drilling Hollow Bar Anchor System is comprised of a hollow threaded bar with an attached drill bit that can perform drilling, anchoring and grouting in a single operation. The hollow bar allows air and water to freely pass through the bar during drilling to remove debris and then allow grout to be injected immediately after drilling is completed. Grout fills the hollow bar and completely covers the entire bolt. Couplers can be used to join hollow bars and extend the bolt length while nuts and plates are used to provide the required tension.

Srons Engineers offers Self Drilling Achors in variants of R25, R32, R38, R51 and T76 and their accessories including the Anchor Nut, Anchor Plate, Anchor Coupler and Drilling bits depending on the geological condition of the project site (Type EX, EXX, ES, ESS, EY, EYY).

Srons Engineers are the largest manufacturers, suppliers and exporters of all types of Self Drilling Anchor Bolt System in India.

Rock Bolt / Rock Bolt Anchor

Self Drilling Anchor Systems / Self Drilling Anchor Hollow Bolts Systems

Self-drilling anchor (SDA) combines drilling, insertion and grouting into one easy operation. It reduces project lead time and installation difficulty. Srons Engineers utilizes low carbon steel in all of its anchor production. Low carbon content in steel increases its ductility, reduces its brittleness, and resists corrosion cracking and carbon embrittlement. This choice of material significantly reduces occurrences where rockbolt may snap or buckle during onsite installation.

Anchor Rods / Anchor Bars / Hollow Threaded Bars

Self drilling anchor bars are a perfect solution to small diameter drilling needs. They come in 3 meter segments that can easily be expanded with the use of couplers. The entire bar is threaded uniformly meaning it can be cut to size to fit any particular application. Various drill bits are configured to fit on the thread allowing for a variety of different applications.

	Unit	R 25N	R 32N	R 32S	R 32SS	R 38L	R 38N	R 38S	R 51N	T 76N
Outer Diameter Key Size	mm	25.00	32.00	32.00	32.00	38.00	38.00	38.00	51.00	76.00
Inner Diameter Length	mm	14.00	20	18.00	16.00	22.00	20.00	19.00	33.00	51.00
Ultimate Load	kN	200	280	360	400	500	500	500	800	1600
Yield Load	kN	150	230	280	320	400	400	400	630	1200
Weight /P.Mtr.	P.Mtr./Kg.	2.30	2.90	3.20	4.00	4.80	5.20	5.5	8.2	16.50
Types of Steel	40Cr/C45/S460

Anchor Nuts

Anchor Nuts are used at the end of the anchor bar to secure the top plate in place. Pick the size according to the size of bar used for the application.

	Unit	R 25N	R 32N	R 32S	R 32SS	R 38L	R 38N	R 38S	R 51L	T 76N
Key Size	mm	41	46	46	46	50	50	50	75	95
Length	mm	35	45	45	65	60	60	60	70	80

Anchor Plates / Anchor rod tray

Anchor Rod Tray is one part od seam pipe anchor rod. Its materials used, solder ring, rolling head production rod, making retaining ring circling cutting, shearing, punching, punching produce trays, rod, retaining ring.

	Unit	R 25N	R 32N	R 32S	R 32S	R 38N	R 38N	R 38S	R 51N	T 76N
Dimension	mm	150x150	200x200	200x200	200x200	200x200	200x200	200x200	250x250	250x250
Thickness	mm	8	10	10	12	12	12	20	40	40
Hole Diameter	mm	30	35	35	35	41	41	41	60	80

Anchor Coupler / Anchor Coupling

Couplers are used to join various segments of anchor bar together. Simply match the coupler size to the bar diameter and multiple bars can be easily joined together. The coupler thread has a break in the center making it easy to ensure that both the front & back end bar meet in the middle of the coupler.

	Unit	R 25N	R 32N	R 32S	R 32S	R 38L	R 38N	R 38S	R 51 N	T 76N
Outer Diameter	mm	36	42	42	42	52	52	52	63	95
Length	mm	150	145	160	190	160	200	220	200	200

Drill Bit Adaptor

Adapters are used with anchor bars to allow a larger drill bit to be used with a smaller bar. The anchor bar threads into the inside of the adapter and the drill bit on the outside. This can be a cost saving solution for applications that do not require the strength of larger diameter bars but benefit from a thicker cross section of grout.

DRILL BIT EX / CROSS CUT DRILL BIT EX

Hardened Steel Cross-Cut Drill Bit are Designed as a cost effective solution for loose to medium dense ground conditions.

DRILL BIT EXX / CROSS CUT DRILL BIT EXX

Tungsten Carbide Cross Cut Drill Bit are Designed with the same shape as a cast hardened cross cut bit but reinforced with tungsten carbide, this drill bit is able to handle soft to medium rock formations.

DRILL BIT ESSF / CROSS CUT DRILL BIT ESSF

Tungsten Carbide Button Drill Bit are Designed with tungsten carbide "buttons" to add extra strength to the cast hardened button bit, this drill bit is excellent at handling medium rock formations.

DRILL BIT ESF / CROSS CUT DRILL BIT ESF

Hardened Steel Button Drill Bit are Designed with tungsten carbide. The "button" design of this drill bit makes it excellent for unconsolidated rock with boulders.

T-SERIES SELF DRILLING ACNHOR

Anchor Bar	T30/16	T30/14	T40/20	T40/16	T52/26	T73/53	T73/56
Outside Diameter (mm)	30	30	40	40	52	73	73
Internal Diameter (mm)	16	14	20	16	26	53	56
Cross Sectional Area (mm)	343	356	713	910	1250	1680	1369
Ultimate Load (kN)	> 220	> 260	> 540	≥ 660	> 929	> 1160	> 1035
Yield Load (kN)	> 180	> 220	> 430	> 525	> 730	> 970	> 830
Weight (kg/m)	2.70	2.80	5.80	7.18	9.90	13.20	10.75
Type of Steel	40Cr/C45/S460

Anchor Nut	T30/16	T30/14	T40/20	T40/16	T52/26	T73/53	T73/56
Key Size SW (mm)	46	46	65	65	80	95	95
Length (mm)	35	35	50	50	70	70	70
Hardness (HRC)	20-30	20-30	20-30	20-30	20-30	20-30	20-30
Thread Type	International Standard / Left or Right
Unit Weight (kg)	0.36	0.36	0.85	0.85	2.35	2.20	2.20
Thread (left/Right Hand)			Left/Right	Left/Right	Left/Right	Left/Right	Left/Right

Anchor Bar	T30/16	T30/16	T40/20	T40/16	T52/26	T73/53	T73/56
Size (mm)	200 x 200	200 x 200	200 x 200	200 x 200	220 x 220	250 x 250	250 x 250
Thickness (mm)	8	8	12	16	35	40	40
Hole Diameter (mm)	36	36		54	65	80	80
Unit Weight (kg)	2.40	2.40	3.50	4.60	12.10	18.00	18.00

Anchor Bar	T30/16	T30/14	T40/20	T40/16	T52/26	T73/53	T73/56
Outside Diameter (mm)	38	38	54	57	70	89	89
Length (mm)	105	105	140	140	160	235	235
Hardness (hrc)	20-30	20-30	20-30	20-30	20-30	20-30	20-30
Thread Type	International Standard/Left or Right
Unit Weight (kg)	0.42	0.42	1.15	1.54	2.30	4.30	4.30
Thread (left/right Hand)	Left/Right	Left/Right	Left/Right	Left/Right	Left/Right	Left/Right	Left/Right
